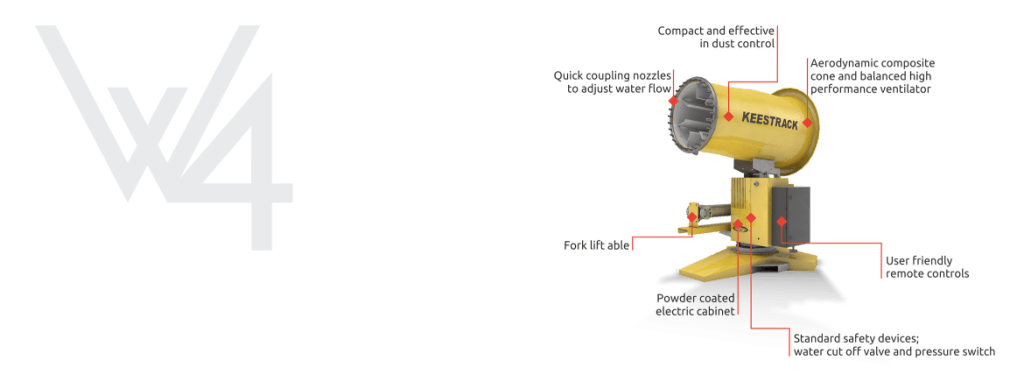

W4 Dust Suppression Cannon

Crushing and screening creates some dust, sometimes spraying nozzles on the machine are not sufficient. A dust suppression cannon W4 is the solution as it creates a mist blanket of micro drops which will connect to the dust particles. The dust will fall down. The angle, distance oscillation and spray nozzles can be adjusted according to your needs and water usage. The W4 has a throw up to 40m (165″)

Product information

Performance highlights

  • Air flow 9.2 m³/sec
  • Throw 40 to 45 meter
  • Oscillation of 60°
  • Adjustable vertical angle -10° to 55°
  • Waterflow 60 l/minute – 20 bar
  • Integrated filter system
  • Stainless steel ring with 30 nozzles with quick coupling
  • Low noise fan
  • Water cut off valve and pressure switch safety devices as a standard

Specifications

Transport dimensions
Weight490 kg
Length1.550 mm
Height2.250 mm
Width1.600 mm

Applications

  • Dust suppression
